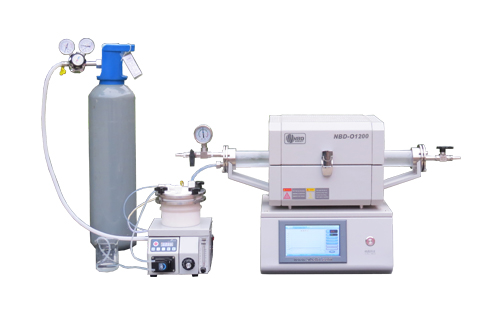

Configuration

Features of equipment

1. Liquid flow control system: intermediate high precision transmission, small flow liquid high precision transmission, flow range: 0.04 ~ 36ml/min;

2. Atomizing device: Equipped with a 1.7MHz ultrasonic atomizer, which can atomize liquid into liquid particles and import them into tubular furnace;
3. Heating system (tubular furnace can be customized) : the highest temperature can reach 1200℃.

Electrical Spec

AC220V    1.2KW

Tmax

1200 °C

Max working temps.

1100℃

Heating rate

≤  20 ℃/min

Heating length

200mm

High precision peristaltic pump

1. Speed range: 0.1·100rpm reversible reversible;

2. Speed resolution: 0.1rpm;

3. Speed regulation mode: film key;

4. Display mode: 4-bit LED displays current speed or current flow rate;

5. Strengthen PP material, corrosion resistance;

6. Flow rate: 0.04-36ml/min;

7. Equipped with full speed key to realize fast emptying and adding;

8. With power failure memory function, save running parameters in time.

atomizer

1.AC220V, 1.7MHz ultrasonic atomizer;

2. The liquid tank is standard PTFE material, corrosion resistant, and sealed with silicone sealing ring;

3. Atomizing flow rate can be realized by controlling gas flowmeter;

4. Continuous operation of atomization can be realized.

Control system

1. 15 temperature curves can be pre-stored to avoid the trouble caused by repeated setting of different experimental processes;

2. The experiment process is more intuitive and the operation is more convenient;

3. Optional wireless control module to realize remote control;

4. With overtemperature alarm, broken couple prompt, leakage protection, etc.

Temp Accuracy

+/- 1 °C

加热元件

Mo掺杂的Fe-Cr-Al合金

Heating element

The standard configuration has a float flowmeter with a range of
60-600ml/min (other ranges can be customized with sales contact)

Net weight

30KG

Cautions

1. When the furnace temperature of the equipment is greater than or equal to 300℃, it is forbidden to open the furnace to avoid injury;

2. When the equipment is in use, the pressure inside the furnace shall not exceed 0.125MPa (absolute pressure) to prevent the pressure from bursting the sealing flange;

3. When used in high vacuum (10-3Pa), the operating temperature of the equipment shall not exceed 800℃.

Service

1 year limited warranty with lifetime support (warranty excludes consumable parts such as handling tubes and O-rings).
