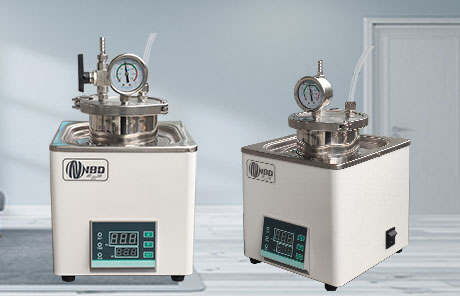

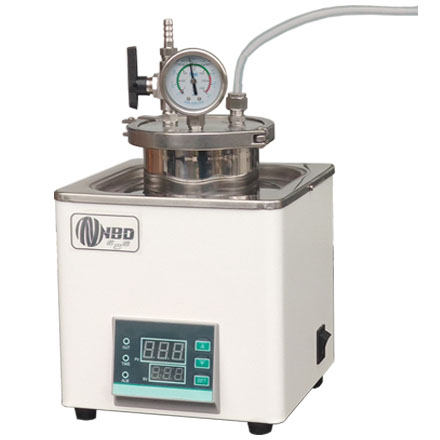

Liquid vapor phase generator, type Ι

Release time: 2024-07-10 03:41:12 Number of views: 126

20012 (1)

Equipment introduction:

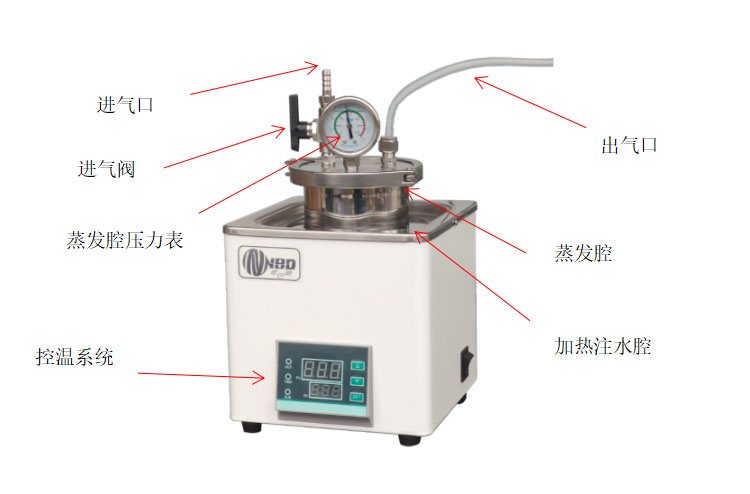

NOBODY liquid vapor generator heating tank and liquid injection chamber are using one-time molding technology, no interface and no weld, the bottom surface is arc shape, no dead Angle is easy to clean, extending the service life of the equipment, heating tank and liquid injection chamber are imported 304 stainless steel material, the surface is reprocessed, with corrosion resistance, difficult to rust characteristics, the control system is protected by concave and convex surface frame. Prevent the boiling liquid from overflowing during the heating process of the instrument and damage the temperature control meter. The control panel has a tilt Angle to increase the operator’s comfort. The double row blue LED display makes the digital display clearer and softer.

Edit Content

Equipment introduction:


NOBODY liquid vapor generator heating tank and liquid injection chamber are using one-time molding technology, no interface and no weld, the bottom surface is arc shape, no dead Angle is easy to clean, extending the service life of the equipment, heating tank and liquid injection chamber are imported 304 stainless steel material, the surface is reprocessed, with corrosion resistance, difficult to rust characteristics, the control system is protected by concave and convex surface frame. Prevent the boiling liquid from overflowing during the heating process of the instrument and damage the temperature control meter. The control panel has a tilt Angle to increase the operator’s comfort. The double row blue LED display makes the digital display clearer and softer

Edit Content

Configuration



Safety guide

1. Please do not open the product without permission. Do not replace the power cable without permission.
2. Without the express permission of the Company, any alteration or modification of the product may cause inconvenience and injury to the user.
3. If there is any abnormal situation in the work of the thermostat, please shut down and cut off the power immediately. If maintenance is needed, it must be carried out by professionals.
4. Turn off the power and unplug the water bath before cleaning or moving it.
5. In order to make the product work normally and prevent unnecessary accidents, please pay attention to the environment; Avoid tilting, keep steady and avoid direct sunlight; And try to avoid use in cold environments.

Model

NBD-GTS0.5L(low temperature)

boundary dimension

200L*400H*200D

Temp Accuracy

±0.5℃

  Temperature control range

RT~100℃

Rated power

AC220V/300W

Function

Timing, heat up

Injection cavity

304 stainless steel quick flange, effective volume 500mL

Vacuum degree of injection chamber

<3pa

Heating medium volume

1700mL

protection

Protection against dry burning

Suitable evaporative material

Suitable for all kinds of liquids evaporated under atmospheric pressure and vacuum;

air inlet

Φ8.3 Pagoda mouth

air outlet

Φ8mm polytetrafluoroethylene (can be directly connected to the temperature hole to enter)

Pressure display

CSilicone rubber inlet pipe 1.5m, PTFE outlet pipe 0.5m, 1 power cord
